GCE 255S 816V 200A Master BMS Used For ESS/UPS Application

Brand Name : Gce Hv BMS

Model Number : RBMS-S20-200A816V

Certification : GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 CE

Place of Origin : China

MOQ : 2 Sets

Price : Negotiable with toby@hngce.com

Payment Terms : T/T

Supply Ability : 2000 sets in one month

Delivery Time : 15 days after receive the payment

Packaging Details : Carton packaging

Dimension : 485*220*550mm

Master Bms Height : 4U

Balancing Current : 200mA

Operating Temperature : -20℃~+60℃

Carton Size : 670*560*240mm

Battery Type : LFP, NMC, LTO

Control Strategy : SOC/SOH

Size : 485mm*220mm*550mm

Communication Type : CAN RS485 TCPIP

Weight : 35kgs

Features : DC&AC Dual Power Supply

Insulation Detection : for minimum 300V systems

Cell Voltage Accuracy : ±5mV

Bms Type : 5U BMS

Current Collection : Hall sensor

Contact Now

1. Application scenarios

◎ Battery Energy Storage System(BESS)
◎ Off-grid energy storage
◎ Data Center
◎ Grid frequency modulation energy storage
◎ Track power / traction
◎ LFP UPS power supply
2. Product system overview
RBMS products are battery management systems developed for large-scale high-voltage battery energystorage systems and UPS applications. Adopting distributed architecture and modular design concept, itis highly configurable, easy to assemble, debug and maintain, and is suitable for various battery energystorage systems with DC voltage below 1000V.
This product can be configured as a minimum two-level architecture (BMU+RBMS), suitable for 10KWh-100KWh occasions. Cooperating with industrial computer and battery stack management software.
It can form a three-level structure (BMU+RBMS+SBMS), which is suitable for 50KWh-2MWh occasions. Cooperating with the server and power station battery management system software.
It can form a four-level architecture (BMU+RBMS+SBMS+BBMS), which is suitable for occasions from 2MWh to 1000MWh to meet different project requirements.
The product has a complete and reliable operation and protection strategy, which effectively extend the life of the battery pack. With various communication interfaces, it can be directly or indirectly interfaced with third-party energy management systems.

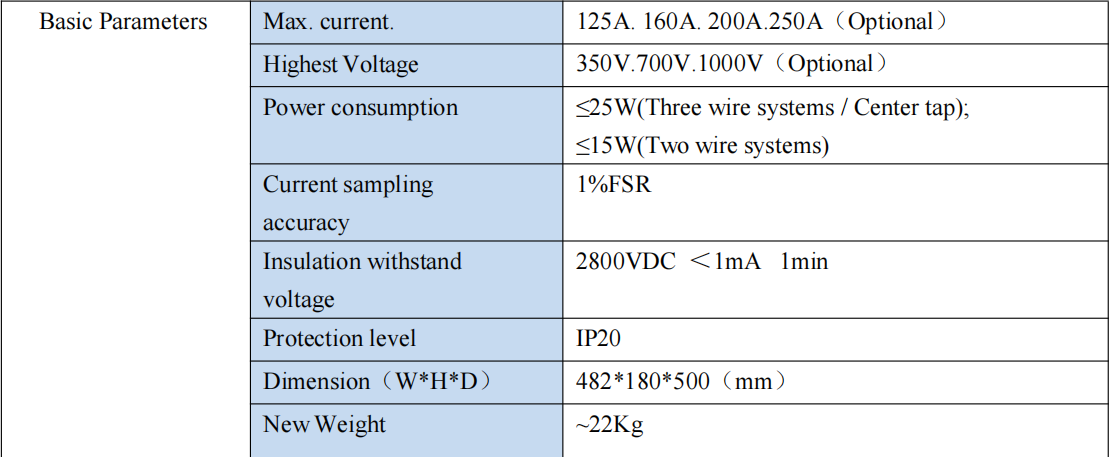

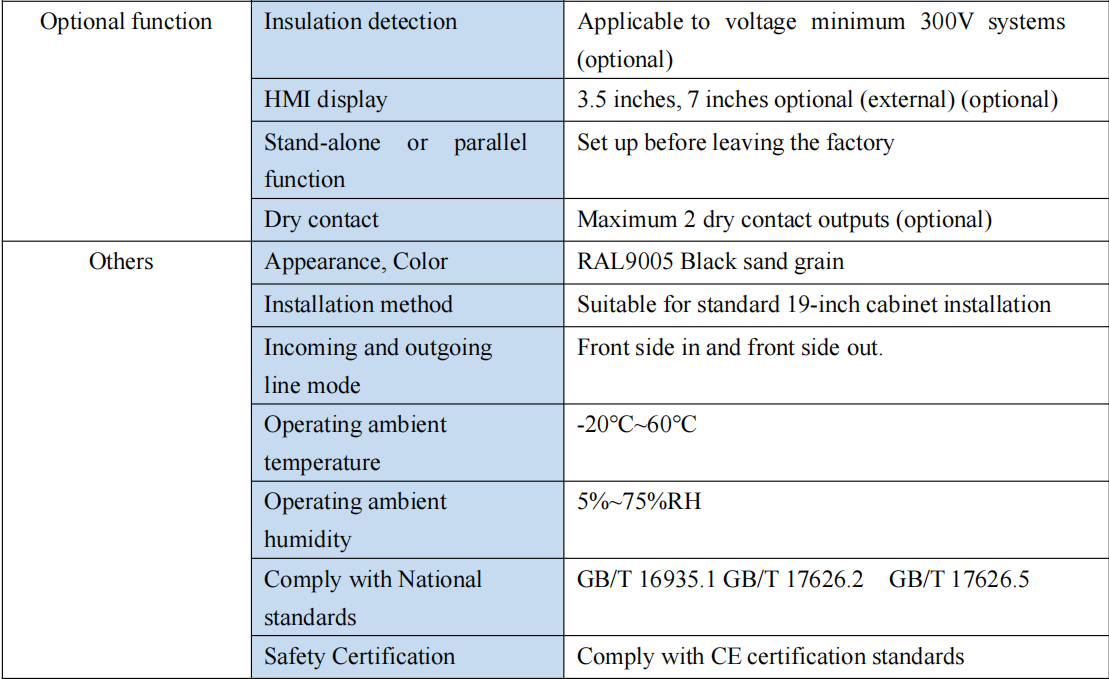

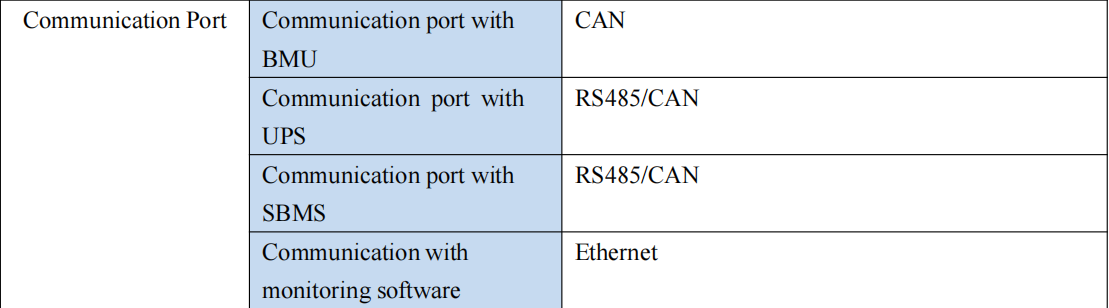

3.RBMS main technical parameters
GCE 255S 816V 200A Master BMS Used For ESS/UPS ApplicationGCE 255S 816V 200A Master BMS Used For ESS/UPS ApplicationGCE 255S 816V 200A Master BMS Used For ESS/UPS Application

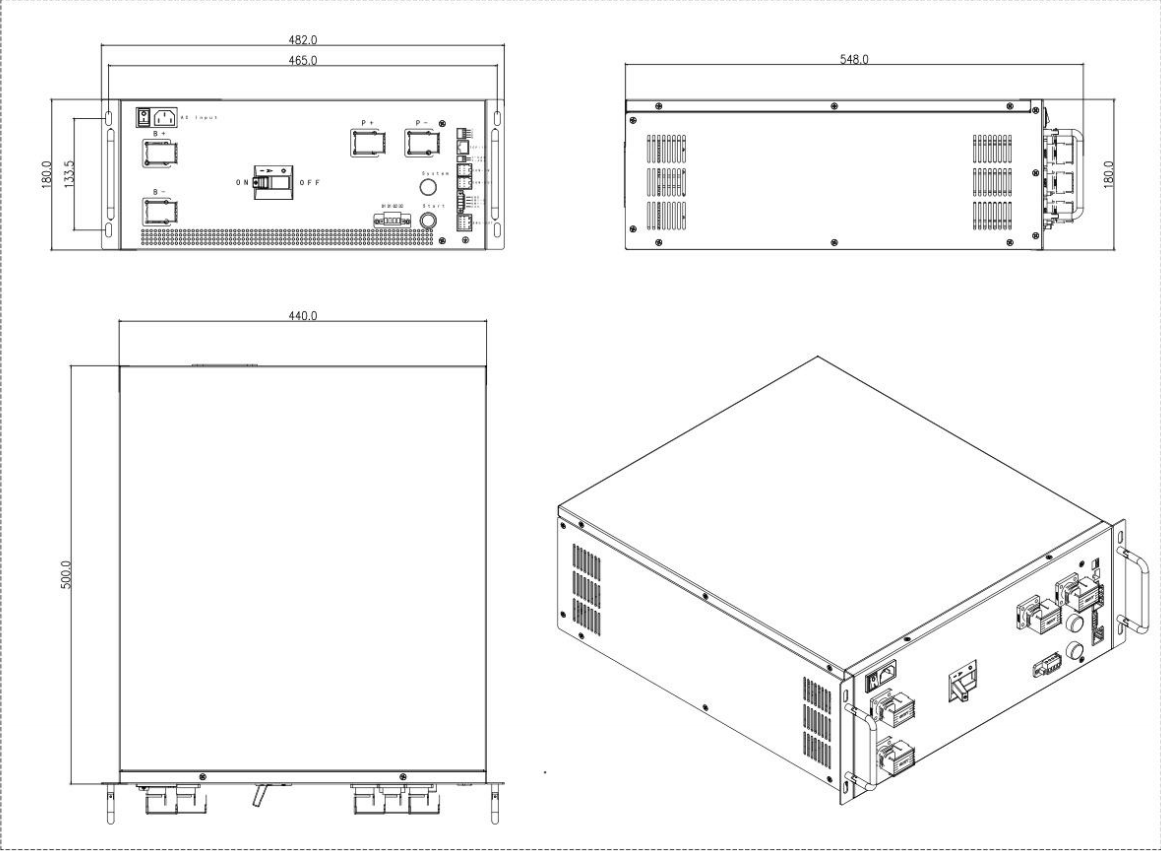

4.RBMS Dimension

GCE 255S 816V 200A Master BMS Used For ESS/UPS Application
